Description

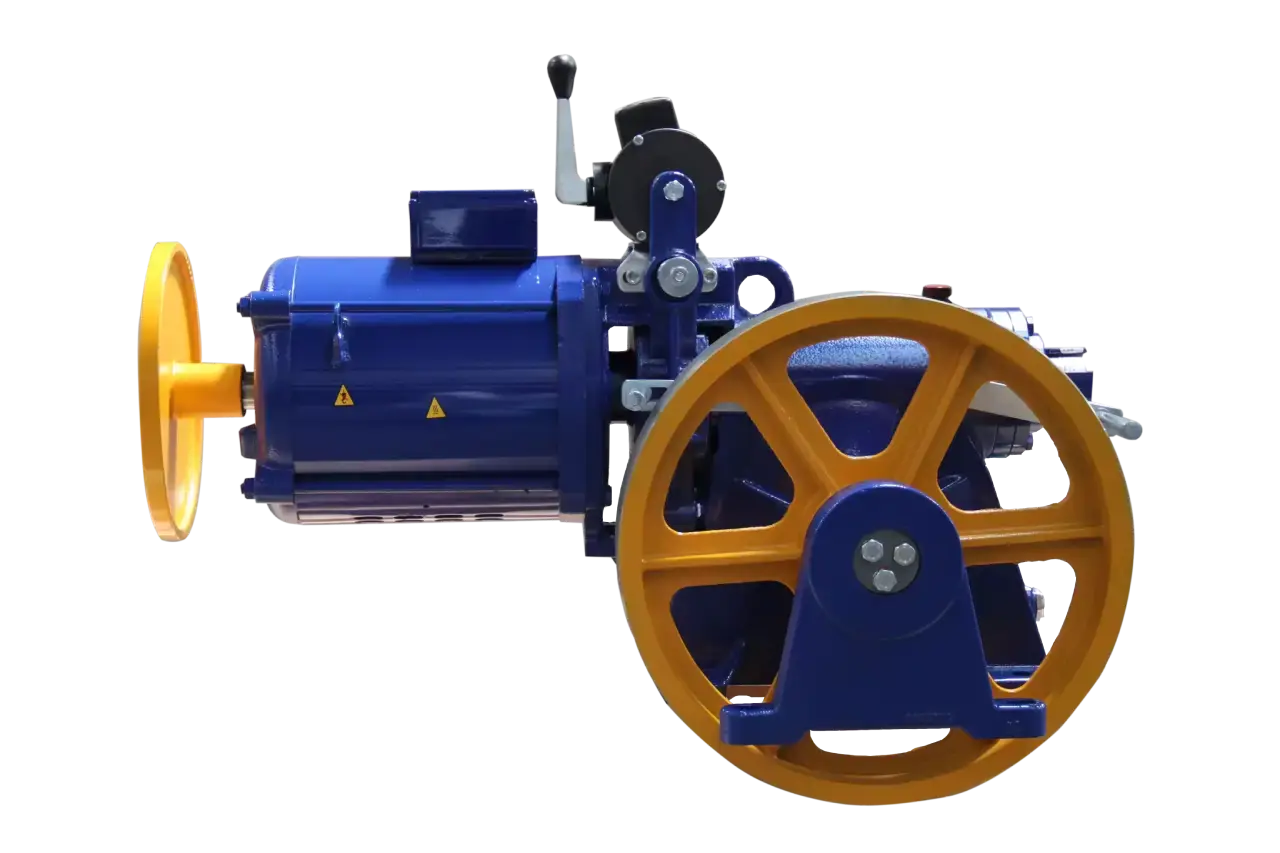

VOLPI VF3X geared elevator motors by Akis Elevator combine powerful performance, durability, and energy efficiency, ensuring smooth operation, high reliability, and long service life for modern elevator systems.
| Product Code | Cabin Speed (m/s) | Capacity (kg) | Power (kW) | Roping | Current (A) | Pulley Diameter (Ø) | Rope (N) | Rope Diameter (Ø) | Static (kg) | Travel (M) | |
| Kw | HP | ||||||||||
| VOLPI VF3X | 1,20 | 600 | 5,50 | 7,48 | 1:1 | 13,50 | 500 | 5 | 10 | 4500 | 51 |
| VOLPI VF3X | 1,60 | 500 | 5,50 | 7,48 | 1:1 | 14,4 | 500 | 5 | 10 | 4500 | 51 |
| VOLPI VF3X | 2,00 | 400 | 5,50 | 7,48 | 1:1 | 14,4 | 620 | 4 | 10 | 4500 | 51 |
| VOLPI VF3X | 2,40 | 320 | 5,50 | 7,48 | 1:1 | 13,50 | 500 | 4 | 10 | 4500 | 51 |
| VOLPI VF3X | 1,20 | 800 | 7,50 | 10,20 | 1:1 | 17,5 | 620 | 6 | 10 | 4500 | 51 |
| VOLPI VF3X | 1,60 | 680 | 7,50 | 10,20 | 1:1 | 17,5 | 500 | 5 | 10 | 4500 | 51 |
| VOLPI VF3X | 2,00 | 550 | 7,50 | 10,20 | 1:1 | 17,5 | 620 | 5 | 10 | 4500 | 51 |
| VOLPI VF3X | 2,40 | 400 | 7,50 | 10,20 | 1:1 | 17,5 | 500 | 5 | 10 | 4500 | 51 |
| VOLPI VF3X | 3,20 | 320 | 7,50 | 10,20 | 1:1 | 17,5 | 620 | 4 | 10 | 4500 | 51 |
| VOLPI VF3X | 1,00 | 720 | 5,50 | 7,48 | 1:1 | 13,50 | 500 | 5 | 10 | 4500 | 51 |
| VOLPI VF3X | 1,00 | 1000 | 7,50 | 10,20 | 1:1 | 17,5 | 500 | 6 | 10 | 4500 | 51 |
| VOLPI VF3X | 1,00 | 1125 | 9,00 | 12,24 | 1:1 | 19,50 | 500 | 6 | 10 | 4500 | 51 |
| VOLPI VF3X | 1,20 | 960 | 9,00 | 12,24 | 1:1 | 19,50 | 620 | 6 | 10 | 4500 | 51 |
| VOLPI VF3X | 1,60 | 800 | 9,00 | 12,24 | 1:1 | 19,50 | 500 | 4 | 10 | 4500 | 51 |
| VOLPI VF3X | 2,00 | 630 | 9,00 | 12,24 | 1:1 | 19,50 | 620 | 5 | 10 | 4500 | 51 |
| VOLPI VF3X | 2,40 | 525 | 9,00 | 12,24 | 1:1 | 19,50 | 500 | 5 | 10 | 4500 | 51 |
| VOLPI VF3X | 3,20 | 450 | 9,00 | 12,24 | 1:1 | 19,50 | 620 | 4 | 10 | 4500 | 51 |
| VOLPI VF3X | 1,00 | 1440 | 11,00 | 14,96 | 1:1 | 23 | 500 | 7 | 10 | 4500 | 51 |
| VOLPI VF3X | 1,20 | 1125 | 11,00 | 14,96 | 1:1 | 23 | 620 | 6 | 10 | 4500 | 51 |
| VOLPI VF3X | 1,60 | 1000 | 11,00 | 14,96 | 1:1 | 23 | 500 | 6 | 10 | 4500 | 51 |
| VOLPI VF3X | 2,00 | 800 | 11,00 | 14,96 | 1:1 | 23 | 620 | 5 | 10 | 4500 | 51 |
| VOLPI VF3X | 2,40 | 640 | 11,00 | 14,96 | 1:1 | 23 | 500 | 5 | 10 | 4500 | 51 |
| VOLPI VF3X | 3,20 | 525 | 11,00 | 14,96 | 1:1 | 23 | 620 | 5 | 10 | 4500 | 51 |
| VOLPI VF3X | 1,00 | 1500 | 15,00 | 20,40 | 1:1 | 31 | 500 | 7 | 10 | 4500 | 51 |
| VOLPI VF3X | 1,20 | 1400 | 15,00 | 20,40 | 1:1 | 31 | 620 | 6 | 10 | 4500 | 51 |
| VOLPI VF3X | 1,60 | 1300 | 15,00 | 20,40 | 1:1 | 31 | 500 | 6 | 10 | 4500 | 51 |
| VOLPI VF3X | 2,00 | 1050 | 15,00 | 20,40 | 1:1 | 31 | 620 | 6 | 10 | 4500 | 51 |
| VOLPI VF3X | 2,40 | 880 | 15,00 | 20,40 | 1:1 | 31 | 500 | 6 | 10 | 4500 | 51 |
| VOLPI VF3X | 3,20 | 720 | 15,00 | 20,40 | 1:1 | 31 | 620 | 5 | 10 | 4500 | 51 |
| VOLPI V3X | 1,00/0,25 | 800 | 6,03 | 8,20 | 1:1 | 14/8,5 | 500 | 5 | 10 | 4500 | 33 |
| VOLPI V3X | 1,00/0,25 | 1000 | 7,72 | 10,50 | 1:1 | 18,5/15,0 | 500 | 6 | 10 | 4500 | 33 |
| VOLPI V3X | 1,00/0,25 | 1200 | 9,19 | 12,50 | 1:1 | 20,5/15,0 | 500 | 6 | 10 | 4500 | 33 |
| VOLPI V3X | 1,00/0,25 | 1350 | 10,29 | 14,00 | 1:1 | 22,5/12,0 | 500 | 6 | 10 | 4500 | 33 |
| VOLPI V3X | 1,00/0,25 | 1400 | 11,77 | 16,00 | 1:1 | 25,0/17,0 | 500 | 7 | 10 | 4500 | 33 |
